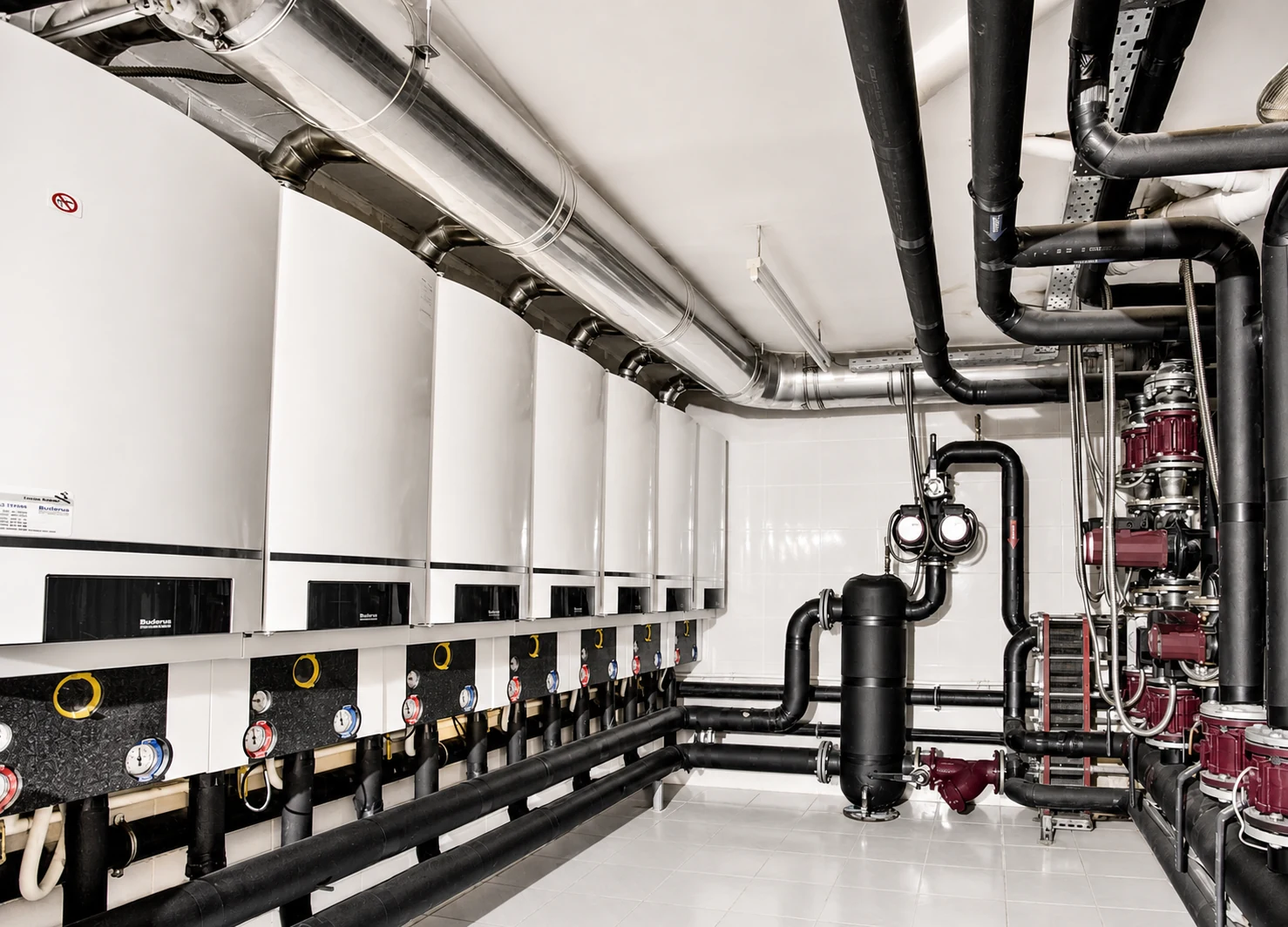

A cascade boiler installation uses multiple boilers with coordinated control to follow changing heating demand. We assess the building load, water-side arrangement, plant-room space and combustion infrastructure before selecting a configuration. The design covers sequencing, part-load behaviour, access and commissioning as well as the boilers themselves.
Capacity that follows the operating profile
The total installed output is only one aspect of selection. Minimum modulation, staging and the time spent at partial load affect how the cascade serves the building through the season. We establish space-heating and domestic hot-water requirements separately, then review how the selected controls prioritise them. Any expectation of continued operation during maintenance should be defined in the project instead of assumed from the number of boilers.
Hydraulic coordination
Boiler flow requirements, secondary circuits, pumps and hydraulic separation must work together. A low-loss header or another suitable separation arrangement can be assessed where the design requires it. Pipe sizes and controls should support the intended flow and temperature conditions. Strainers, air-removal devices, isolation valves and balancing points are coordinated with service access so that each part of the cascade can be managed during operation.
Flues, condensate and the plant room
Flue compatibility and the installed configuration follow the selected manufacturer’s requirements and the project’s relevant provisions. Combustion-air supply, discharge position and condensate drainage are coordinated with the building. We review safe access for servicing, equipment replacement and isolation. These details can govern whether a proposed cascade fits an existing plant room, even when the nominal capacity appears appropriate.
Sequencing, testing and handover
The control sequence should explain boiler lead and lag operation, demand response and fault handling. Outdoor-temperature compensation and connected building controls are evaluated where supported. Commissioning records relevant flow, temperature, control and individual-boiler checks. We identify the maintenance responsibility and operating settings so the facilities team understands the difference between a boiler fault, a control demand and a hydraulic restriction.
Technical points we check
- Peak load, partial-load demand and domestic hot-water priority.
- Minimum modulation, staging and the agreed operational resilience.
- Water flow, hydraulic separation, pumps and service isolation.
- Approved flue configuration, combustion air, condensate drainage and controls.
From site survey to handover
We survey the building fabric, room use, available heat source and existing pipework before agreeing the installation scope. Heat-loss calculations and the operating temperature guide equipment selection. Our handover covers the installed layout, accessible isolation points, control settings and commissioning records. We explain how room controls, seasonal settings and maintenance affect day-to-day operation, rather than treating delivery as the moment the last pipe is connected.
Frequently asked questions
Does a cascade automatically reduce fuel consumption?
It can support efficient operation, but the outcome depends on correct sizing, return-water conditions, sequencing, distribution and maintenance. The boiler count alone is not evidence of a particular saving.
Can an existing boiler room be converted?
We survey the available space, flue routes, gas and electrical supplies, condensate drainage and existing hydraulic circuits. The proposal follows the conditions identified on site and the selected equipment’s requirements.
