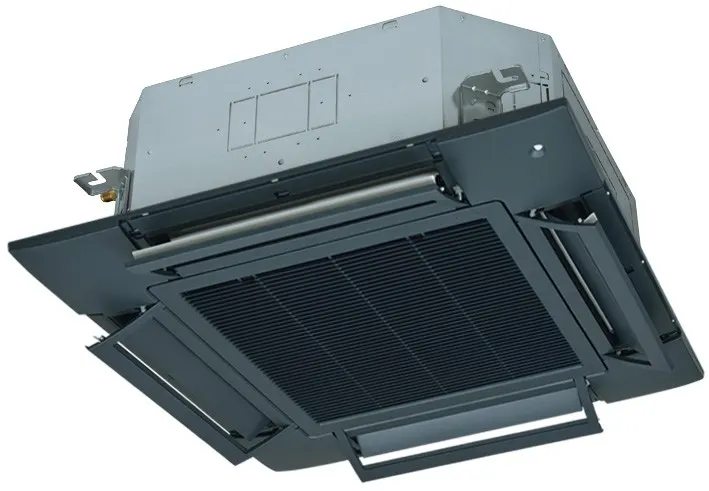

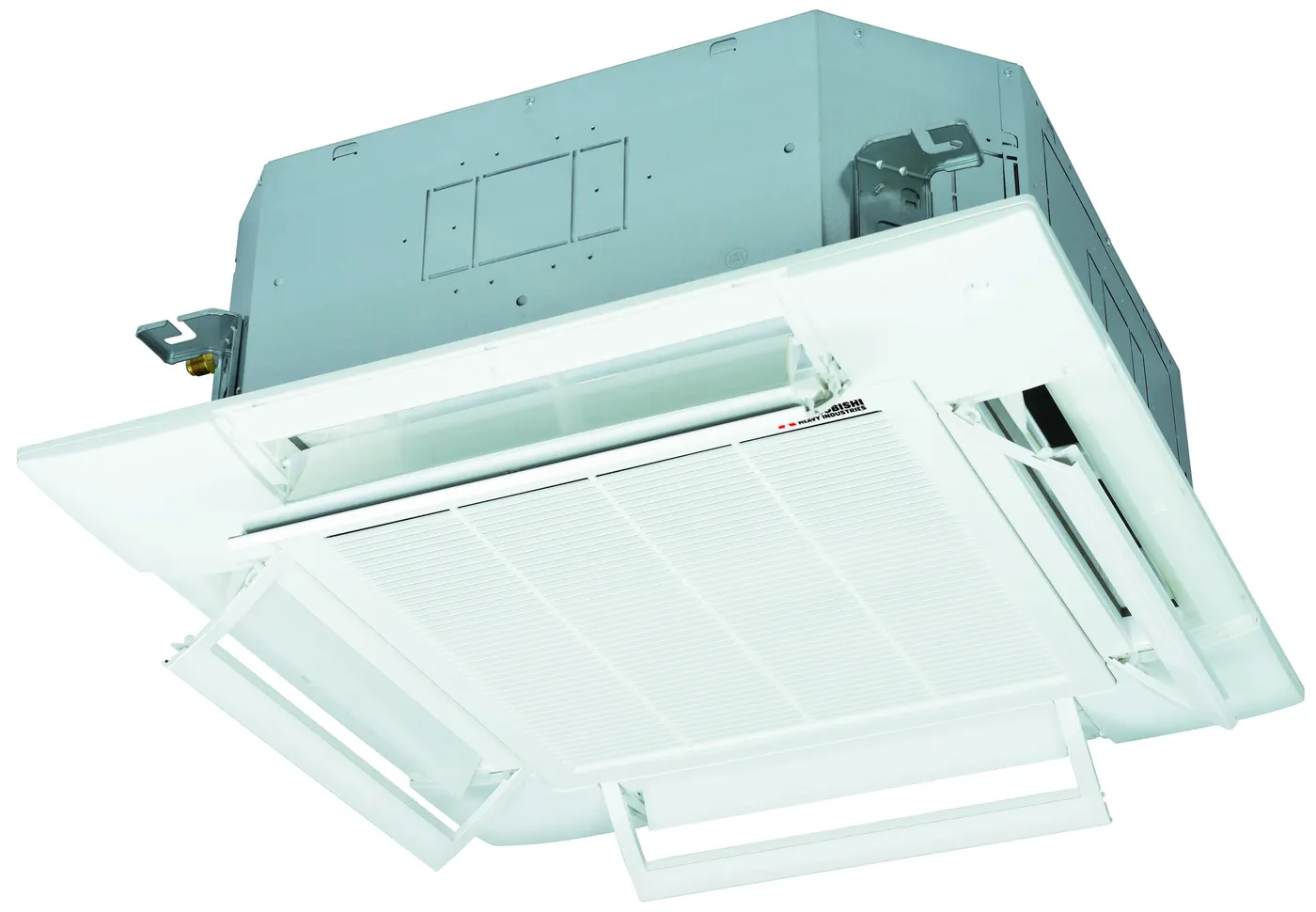

Mitsubishi Heavy FDT100VNPWVH 34,000 BTU Cassette Air Conditioner

Mitsubishi Heavy FDT100VNPWVH 34.000 BTU Cassette Air Conditioner is presented with the equipment set specifications for open-plan offices, shops, restaurants, showrooms and meeting areas. We assess room load, occupancy, ceiling layout, air distribution and electrical infrastructure together before selecting the equipment.

This 34.000 BTU/h-class standard inverter set has nominal cooling and heating capacities of 10,0 kW. Its four-way indoor unit louvres help distribute air to different parts of the room. It uses R32 refrigerant and has A++ cooling and A+ heating energy classes.

We assess room volume, ceiling height, occupancy, fresh air requirements, duct and diffuser placement, and electrical infrastructure alongside capacity. This allows equipment selection to reflect the actual project operating conditions.

The price is for the equipment set only. Pipework, installation, electrical infrastructure and the site survey are excluded. Contact our team to confirm the project capacity and request a site survey and installation quotation.

Technical information

Model / set code: FDT100VNPWVH (indoor unit: FDT100VH, outdoor unit: FDC100VNP-W)

Equipment type: four-way cassette standard inverter air conditioner

Nominal capacity: cooling 10,0 kW (2,1–10,2), heating 10,0 kW (1,7–10,4)

Power supply: 1 phase, 220–240 V, 50 Hz

Energy efficiency: SEER 7,08; SCOP 4,53; cooling A++, heating A+

Power input: cooling 2,84 kW / heating 2,33 kW

Dimensions: indoor unit 298 × 840 × 840 mm; panel 35 × 950 × 950 mm; outdoor unit 750 × 880(+88) × 340 mm

Sound pressure (cooling): indoor unit 47/39/36/30 dB(A); outdoor unit 56 dB(A)

Refrigerant: R32. Pipe diameters: liquid 6,35 mm (1/4 inch), gas 15,88 mm (5/8 inch).

Maximum pipe length 30 m; maximum height difference outdoor unit above/below 20/20 m. Panel options: Fine Snow (white) and Shadow Black (black).
