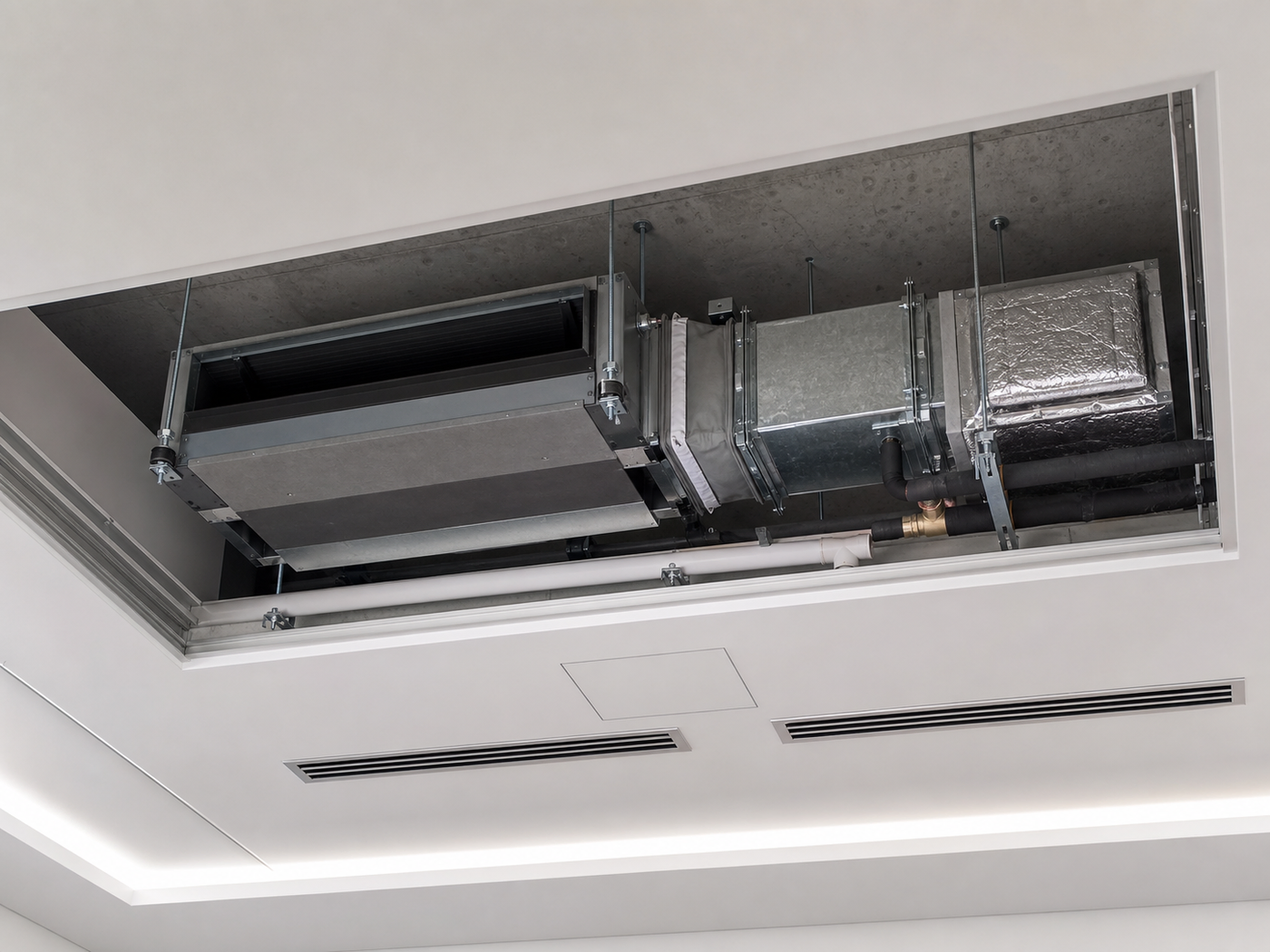

Mitsubishi Heavy FDUM140VNAWVH Medium Static Pressure Ducted Air Conditioner

Mitsubishi Heavy FDUM140VNAWVH Medium Static Pressure Ducted Air Conditioner is presented with the equipment set specifications for offices, hotels and shops requiring concealed ceiling installation. We assess room load, occupancy, ceiling layout, air distribution and electrical infrastructure together before selecting the equipment.

Nominal cooling 13,6 kW (5,0-14,5); heating 15,5 kW (4,0-16,5). 1 phase, 220-240 V, 50 Hz; medium static pressure ducted type. These figures must be assessed together with the project heat load and airflow calculations.

EER 2,65; COP 3,68; SEER 5,30; SCOP 4,01. The published performance figures are listed in detail in the technical information section.

We coordinate the site survey, capacity verification, duct or pipe routes, drainage and infrastructure assessment before commissioning within the same project process. Equipment selection is therefore assessed together with its installation conditions.

The listed price is for the equipment set only. Installation, copper pipework, duct fabrication, electrical infrastructure, drainage and the site survey are excluded. Contact our team for a project-specific site survey and installation quotation.

Technical information

Set: FDUM140VH indoor unit + FDC140VNA-W outdoor unit.

1 phase, 220-240 V, 50 Hz; medium static pressure ducted type.

Nominal cooling 13,6 kW (5,0-14,5); heating 15,5 kW (4,0-16,5).

EER 2,65; COP 3,68; SEER 5,30; SCOP 4,01.

Indoor unit 280 x 1370 x 740 mm, 54 kg; outdoor unit 845 x 970 x 370 mm, 77 kg.

Indoor sound pressure 47/40/35/30 dB(A); outdoor sound pressure 56/58 dB(A).

Standard static pressure 60 Pa, maximum 100 Pa.

R32, 3,30 kg; liquid pipe diameter 9,52 mm, gas 15,88 mm; maximum pipe length 50 m.

600 mm drain pump as standard; UM-FL3EF filter is optional.

RC-E5 is standard; RC-EX3A/RCH-E3 wired and RCN-KIT4-E2 wireless controllers are optional.
